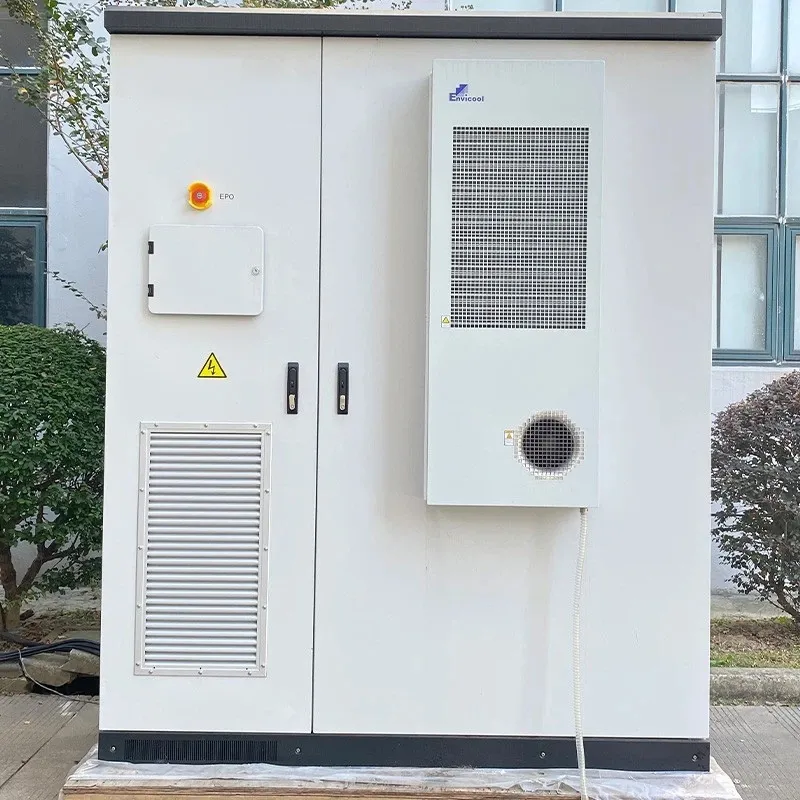

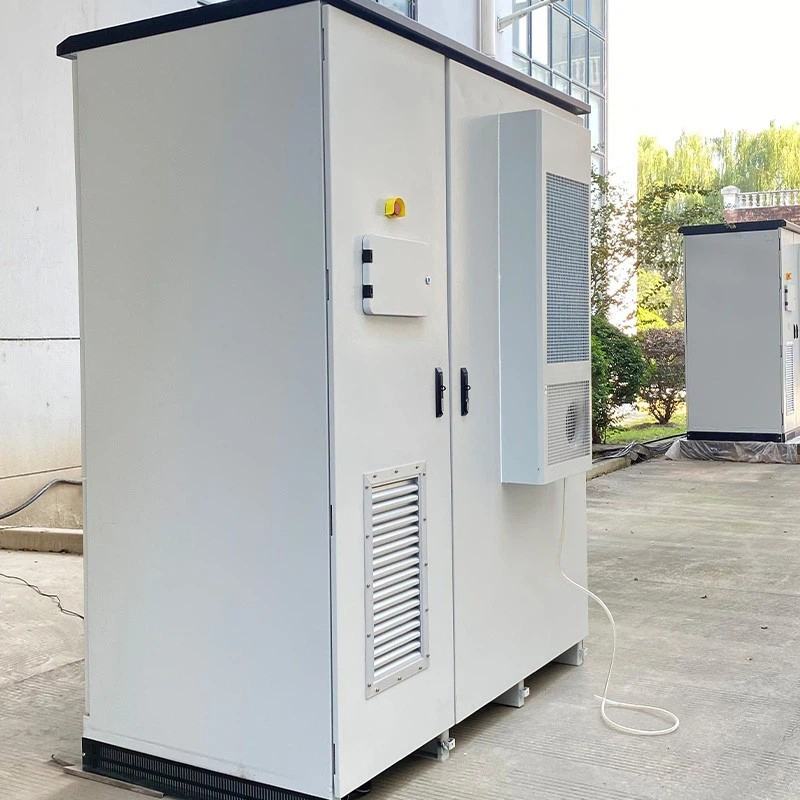

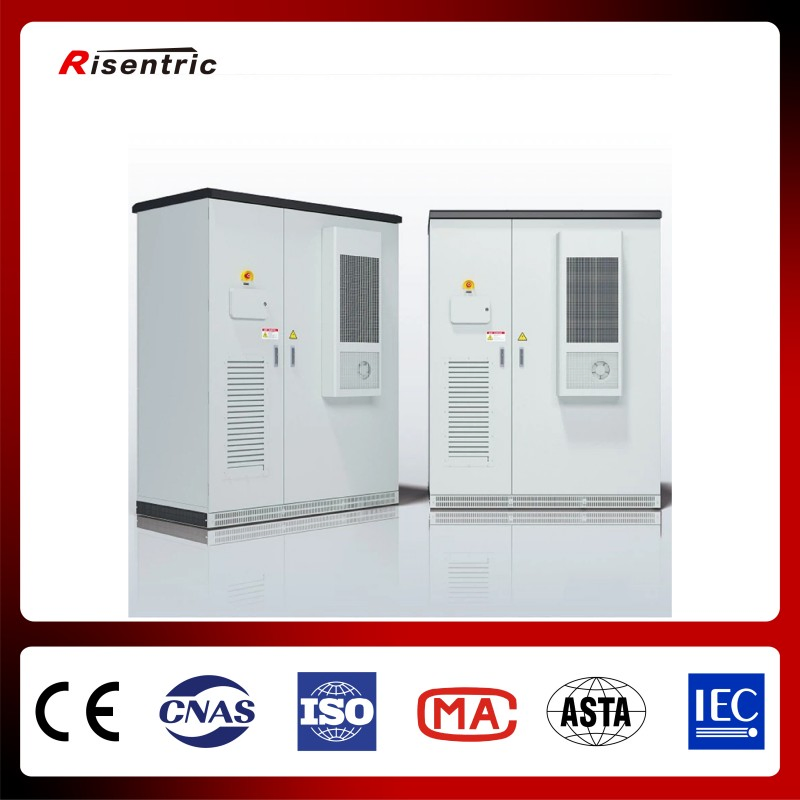

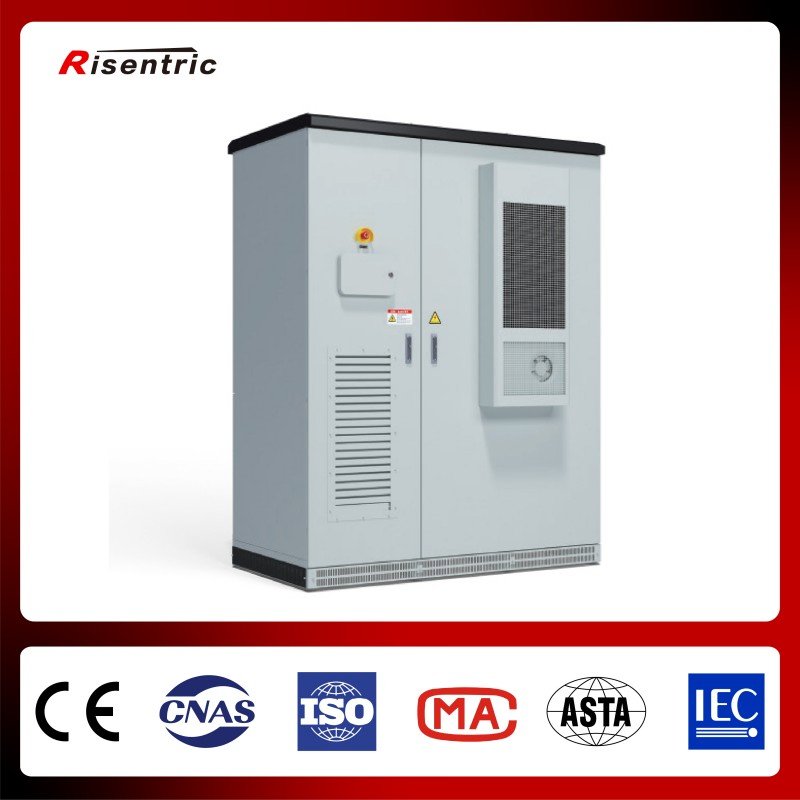

A Solar Battery Storage Cabinet is a compact, indoor/outdoor enclosure that integrates a battery system (usually LFP lithium) with key safety and control components to store solar energy and deliver power when solar output is low (nighttime, cloudy periods) or when the grid is unavailable. Compared with a containerized energy storage system, a cabinet is typically smaller, easier to place, and designed for commercial/industrial sites or building-level solar + storage rather than utility-scale projects.
| Rated power / energy capacity | 100 kW / 200 kWh |
| AC output | 400 V / 50 Hz |
| Cooling type | air-cooled |
| Fire protection | aerosol |
| Cabinet dimensions | 1850×1000×2400mm |

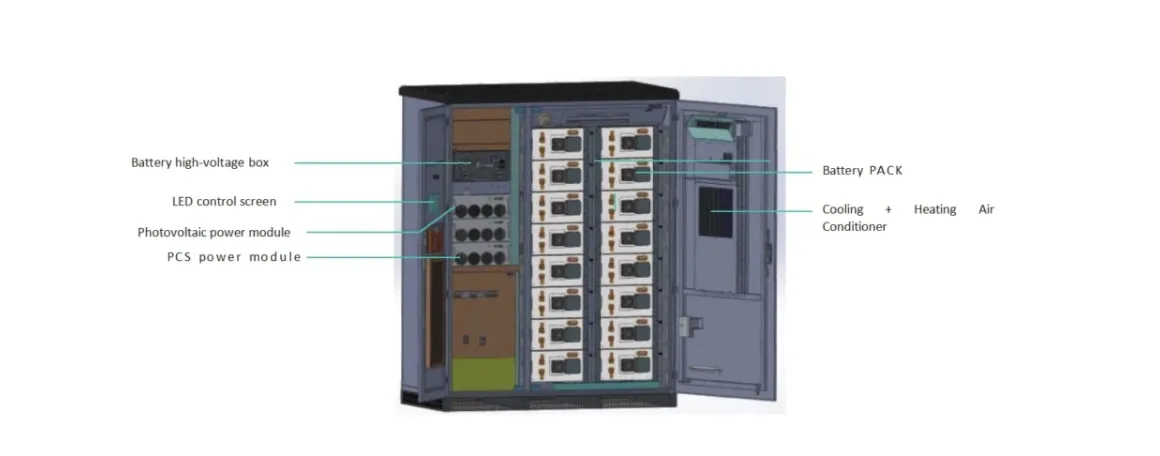

| Equipment | Specifications | Unit | Quantity |
|---|---|---|---|
| Energy storage battery system | 100kW/200kWh | Set | 1 |
| Battery pack | Battery cell:280Ah; Single PACK capacity: 12.54kWh | Set | 16 |
| High-voltage box | Integrated with fuses, sensors, power supplies | — | 1 |
| Air-cooled unit | Dedicated 3kW air conditioner | — | 1 |
| Energy storage converter | 100kW, AC 400V/50Hz | Set | 1 |
| EMS Hardware | Energy management and coordinated control | Set | 1 |

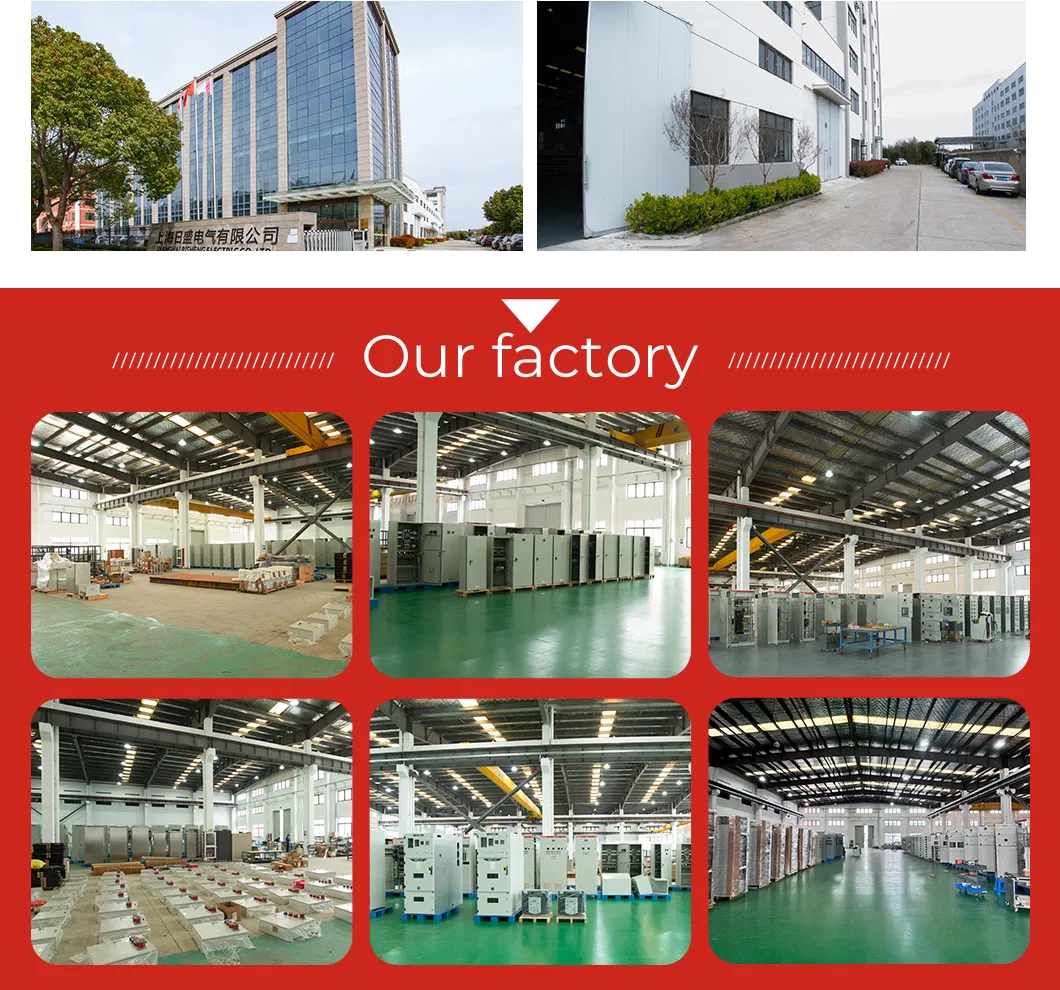

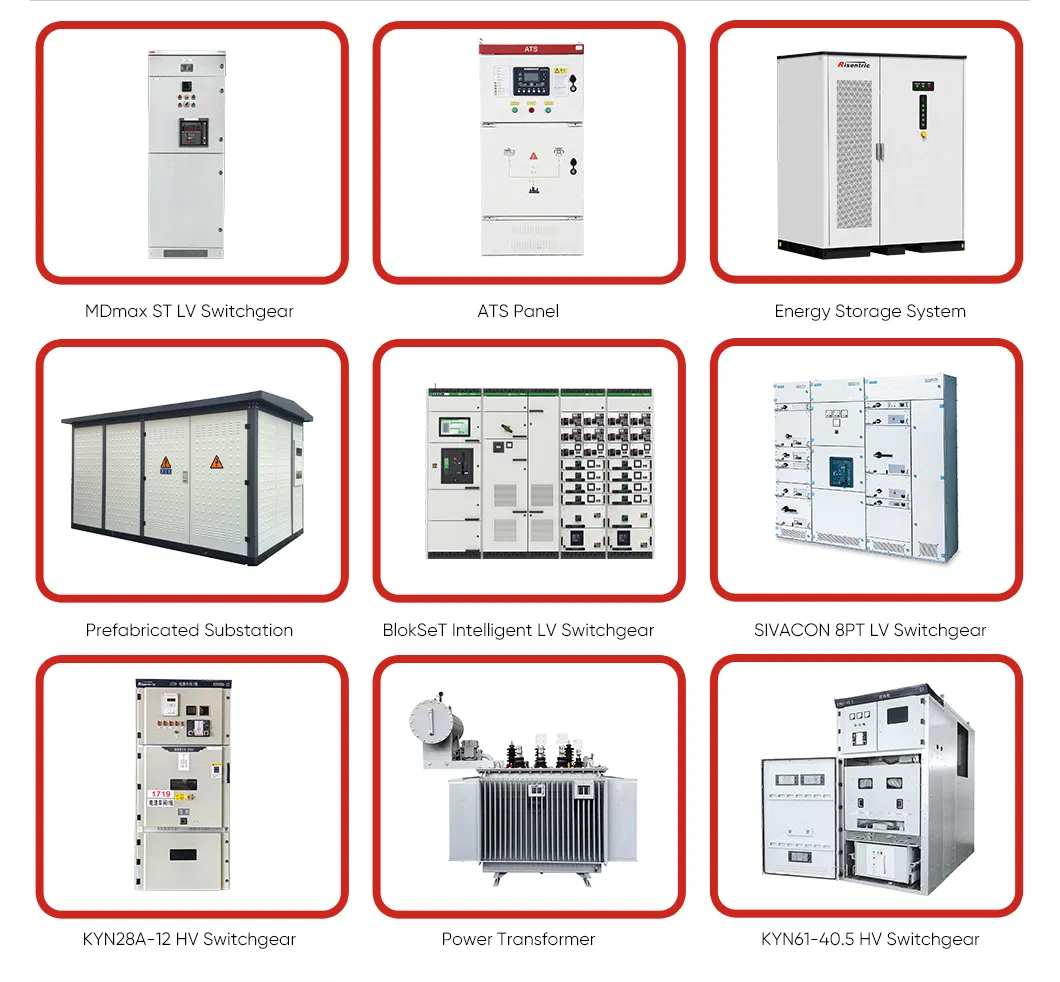

Possessing comprehensive capabilities covering R&D, design, manufacturing, and system integration. The portfolio includes high- and low-voltage switchgear, prefabricated substations, and photovoltaic equipment. Lean manufacturing is achieved through advanced CNC turret punching, bending, and laser cutting machines.
